#159 Relation tags support line styles

[kirchsth]

AddRelTag() is extended with $lineStyle argument that dashed, dotted or bold line styles can be defined like below.
The possible line styles are DashedLine(), BoldLine() and DottedLine(). It can be tested via my extended branch

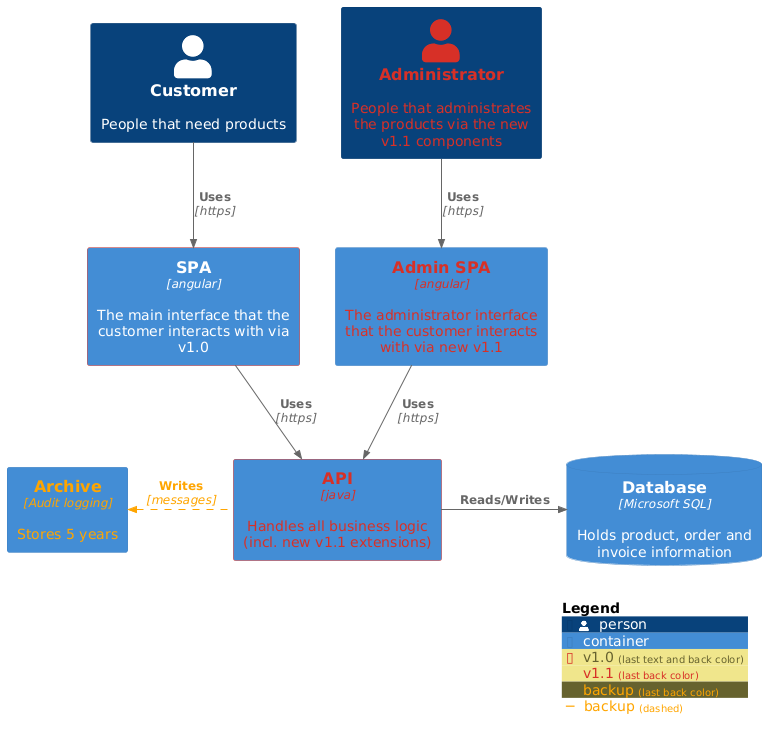

@startuml
!include https://raw.githubusercontent.com/kirchsth/C4-PlantUML/extended/C4_Container.puml

AddElementTag("v1.0", $borderColor="#d73027")
AddElementTag("v1.1", $fontColor="#d73027")
AddElementTag("backup", $fontColor="orange")

AddRelTag("backup", $textColor="orange", $lineColor="orange", $lineStyle = DashedLine())

Person(user, "Customer", "People that need products")
Person(admin, "Administrator", "People that administrates the products via the new v1.1 components", $tags="v1.1")
Container(spa, "SPA", "angular", "The main interface that the customer interacts with via v1.0", $tags="v1.0")
Container(spaAdmin, "Admin SPA", "angular", "The administrator interface that the customer interacts with via new v1.1", $tags="v1.1")
Container(api, "API", "java", "Handles all business logic (incl. new v1.1 extensions)", $tags="v1.0+v1.1")
ContainerDb(db, "Database", "Microsoft SQL", "Holds product, order and invoice information")
Container(archive, "Archive", "Audit logging", "Stores 5 years", $tags="backup")

Rel(user, spa, "Uses", "https")
Rel(spa, api, "Uses", "https")
Rel_R(api, db, "Reads/Writes")
Rel(admin, spaAdmin, "Uses", "https")
Rel(spaAdmin, api, "Uses", "https")
Rel_L(api, archive, "Writes", "messages", $tags="backup")

SHOW_LEGEND()
@enduml

BR Helmut
